Equinox PIXELpoint Batten

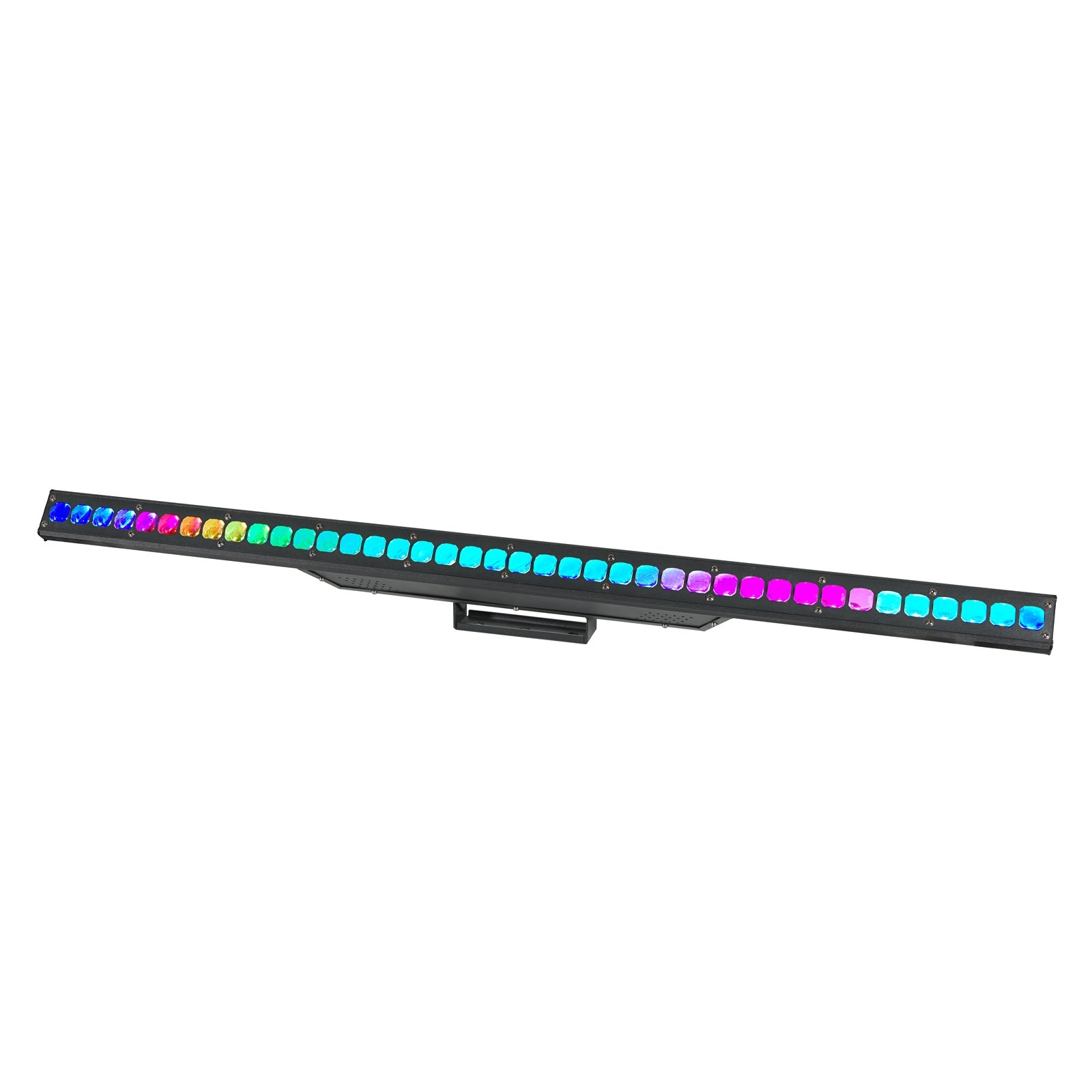

The PIXELpoint multi-beam batten features 40 x 3W 3-in-1 RGB individually controllable LEDs dispensing super narrow, long throw beams for sharp mid-air effects. The unit is packed with multiple different flows and chases creating stunning eye candy effects. For full creativity, DMX control can also be utilised via one of the 13 different channel modes allowing each pixel to be mapped for even more stunning visual effects. Power/DMX linking provides easy connection of multiple units.
The PIXELpoint multi-beam batten features 40 x 3W 3-in-1 RGB individually controllable LEDs dispensing super narrow, long throw beams for sharp mid-air effects. The unit is packed with multiple different flows and chases creating stunning eye candy effects. For full creativity, DMX control can also be utilised via one of the 13 different channel modes allowing each pixel to be mapped for even more stunning visual effects. Power/DMX linking provides easy connection of multiple units.
The PIXELpoint multi-beam batten features 40 x 3W 3-in-1 RGB individually controllable LEDs dispensing super narrow, long throw beams for sharp mid-air effects. The unit is packed with multiple different flows and chases creating stunning eye candy effects. For full creativity, DMX control can also be utilised via one of the 13 different channel modes allowing each pixel to be mapped for even more stunning visual effects. Power/DMX linking provides easy connection of multiple units.
-
40 x 3W tri-colour LEDs (RGB)
Beam angle: 5°
4kHz refresh rate
Pixel mapping capabilities
DMX channels: 3/4/6/7/8/12/13/24/25/60/61/120 or 121 selectable
Static colour, auto, sound active and master/slave modes
0-100% dimming
Variable strobe
Supplied with mounting bracket
4 push button menu with LED display
PowerCON input/output
3-Pin XLR input/output
Convection cooled
-
Power consumption: 76W
Power supply: 100~240V, 50/60Hz
Fuse: F1A 250V
Dimensions: (H x W x D) 55 x 1005 x 145mm
Weight: 2.5kg
-
Barcode / EAN - 0702338073373
Commodity Code - 9405499090
Country Of Origin - CN
-
